Roubo Style Frame Saw

https://youtu.be/SC_hn3T9AqM

I made a frame saw a year ago. It worked fantastically, but one day I dropped it and busted out one of the mortises. Oh well, it is just a good reason to remake this one even better. A frame saw is the traditional way of resawing lumber. This one is meant for one person but some of the larger ones are designed for two people to run.

Tools Needed

#4 Hand plane setup for smoothing: http://amzn.to/2hc6LQZ

Scrub or foreplane: http://amzn.to/2hUHD0p

Square: http://amzn.to/2ia9M3Z

Marking Gauge: http://amzn.to/2i0jvHx

Panel Saw: http://amzn.to/2hjAura

Marking Knife: http://amzn.to/2hPHf34

Chisel Set: http://amzn.to/2i26mzX

Block Plane: http://amzn.to/2ikkaqg

File Set: http://amzn.to/2l0czdB

Long-nosed Marker: http://amzn.to/2lExV1e

Dovetail Saw: http://www.highlandwoodworking.com/veritas-dovetail-saw.aspx?A=1367&B=28

V-Tool: http://amzn.to/2kf8OjO

Carving Kit: http://amzn.to/2kf8Wjb

Supplies Needed

Frame Saw Kit: http://www.blackburntools.com/new-tools/new-saws-and-related/roubo-frame-saw-kit/index.html

White Oak: or whatever wood you want to use.

Boiled Linseed Oil: http://amzn.to/2hPEUVO

Paste Wax: http://amzn.to/2inlN23

Wood Glue: http://amzn.to/2kEeTHc

The Frame Saw Kit


I built this saw with a kit I bought from BlackBurn Tools and am in love with the kit. I purchased the 32" size kit as that is easy enough for one person to run by themselves. http://www.blackburntools.com/new-tools/new-saws-and-related/roubo-frame-saw-kit/index.html In this case, I am actually reusing the kit that I used in my last one.

Laminate Lumber for Beams

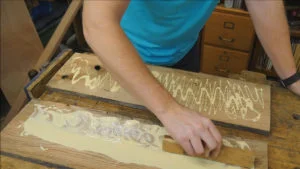

You will need stock about 1 1/4" thick. Unfortunately, I did not have enough of it on hand to make this so I need to laminate two 3/4" thick pieces. I flattened one side of both pieces with a scrub plane and number 4; then enough glue is added and the two boards are clamped and set aside to dry. After the glue cures, the stock can be flattened and smoothed on both sides.

Trace the Pattern


In my case, I used the old frame saw to trace out the pattern I wanted to follow, but you can download the pattern at Blackburn Tools where the kit came from. With a paper pattern,  I find it easiest to just glue it to the stock and cut out to the pattern.

Shape the Beams


I start by making a series of relief cuts down to the marking line. If the grain is running well, I will use a mallet to snap off the large chunks. A large chisel can make quick work of bringing it down to the line. In some cases, a turning saw is useful, but most all of the work is done with a chisel and mallet for me.

Shape the Handle


For the handle, I will use a chisel to do the majority of the shaping. Then, I will come in with coarse rasps, and then, a coarse file, and then, a fine file and finish the surface with a very fine file.

Insert Pressure Plate


On one end of the beam, there needs to be pressure plate inserted for the screw to push against. I set the plate on the beam where it should go and then trace it out with a marking knife. Next, the waste can be removed with a chisel down to the depth so the plate is flat with the surface of the beam.

Shape the Two Stretchers


The two stretchers that separate the two end beams are about 1 1/4" square and made to match the length of the blade you chose. It is a simple process of ripping them down and milling them to dimension. I made them 1" longer than needed for a 1/2" tenon on either end of the beam.

Cut the Tenon

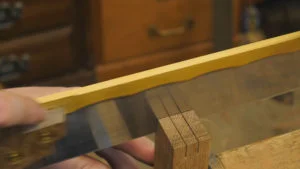

I use a marking knife to mark out a half inch long tenon that is 1/3 the width of the stretcher. Then, I use a back saw to cut them to shape because these are so small I chose to use a dovetail saw.

Cut Mortise


In either end of both beams, there needs to be a mortise cut to fit the tenon. I start by chopping either side with a chisel to sever the fibers, the come in with a smaller chisel to remove the waste. Keep testing the fit and make sure the stretcher seats all the way down to the beam. Be very careful now to blow out either side of the mortise.

Add Some Carving


A little bit of carving can make the whole difference in the world. I added a bit of carving to both beams. In total, it added about 1 hour of work to the task, but was so worth it in the end. For this, I just used a V-Tool to follow a line. With 15 minutes of practice, you can do this too. It is so much easier than it sounds.

FINISH IT!!


For the finish, I used Boiled linseed oil and paste wax. It just feels great for a hand tool. Then, you can put it together and have some fun.
